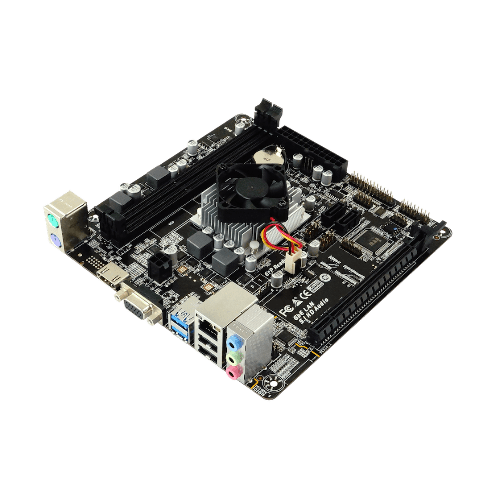

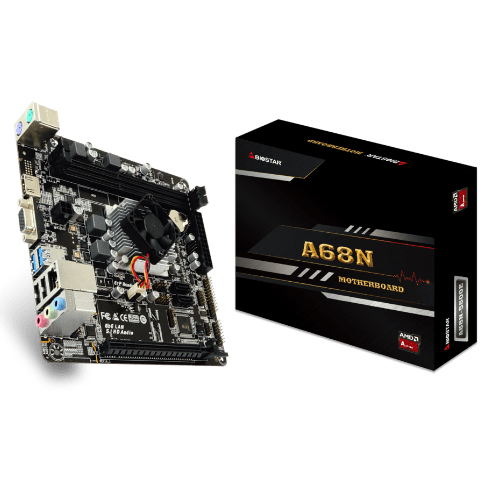

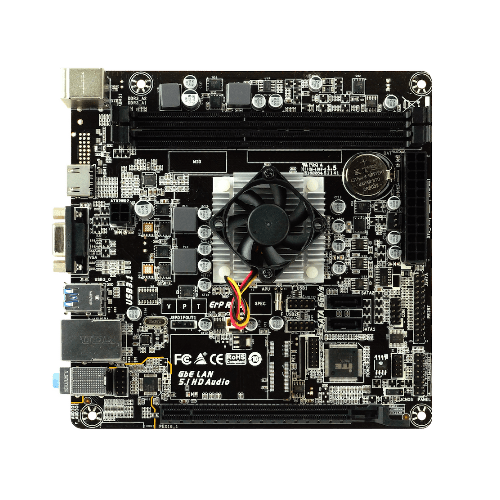

BIOSTAR A68N-5600E MOTHERBOARD WITH CPU

Biostar
In stock
₦50,790.00
AMD PRO A4-3350B Processor
Supports 2 DIMM of DDR3 1600 & DDR3L 1333
Supports AMD Radeon™ R4 Graphics
Support HDMI display port
Supports USB 3.1 Gen1 Port
Supports TPM Header
₦50,790.00
Terms of Service

HD Audio

Provides high quality sound with minimal loss of audio fidelity.


S/P DIF Output on board

Onboard Optical & Coaxial connector supports your desktop in transferring the non-distortion digital audio output to the AV amplifier and professional speaker system.



DX11.1

Direct3D 11.1 enables Direct3D 10 APIs and Direct3D 11 APIs to use one underlying rendering device. And it allows developers to achieve a high speed, fully conformant software rasterizer.



USB 3.1 Gen 1 Type-A

Experience Fastest data transfers at 5 Gbps with USB 3.1 Gen 1--the new latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.1 Gen 1 transfers data 10X faster and backward compatible with previous USB 2.0 components.



SATAIII 6Gbps

SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA II.



100% Solid Caps

With armor-plated Biostar Technology, all capacitors are placed with 100% solid capacitors that have a lasting life cycle, durability and stability for crucial components



 eHot-Line Utiltiy

Integrated e-service automatically sends your technical support request to Biostar Globe tech support without any delay.

AMD PRO A4-3350B Processor
Supports 2 DIMM of DDR3 1600 & DDR3L 1333
Supports AMD Radeon™ R4 Graphics
Support HDMI display port
Supports USB 3.1 Gen1 Port
Supports TPM Header

Chipset: Carrizo-L

CPU: AMD PRO A4-3350B Processor
(Quad Core 2.0GHz up to 2.4GHz, 15W)

MEMORY: Max. Supports up to 16GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 & DDR3L module
# of DIMMs per channel # of Ranks per DIMM 1.50V 1.35V
1 of 1 xR DDR3-1600 DDR3-1333
1 of 2 xR-0 DDR3-1333 DDR3-1333
2 of 2 1R-1R DDR3-1333 DDR3-1333
2 of 2 2R-xR DDR3-1333 DDR3-1333
X=1or 2

INTEGRATED VIDEO: AMD Radeon™ R4 Graphics
Supports HDCP

STORAGE: 2 x SATA III Connectors (6Gb/s) : Supports AHCI

LAN: Realtek RTL8111H - 10/100/1000Mb/s Controller

AUDIO CODEC: Realtek ALC887 5.1-Channel Audio
Support HD Audio
Support SPDIF_out

USB: 2 x USB 3.1 Gen1 Port (2 on rear I/Os)
6 x USB 2.0 Port (2 on rear I/Os and 4 via internal header)

EXPANSION SLOT: 1 x PCI-E 2.0 x16 Slot (x4)

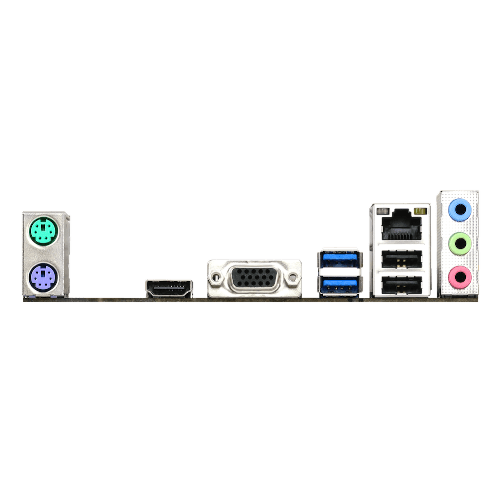

REAR I/O: 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.1 Gen1 Ports
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks

INTERNAL I/O: Supports Single Channel DDR3
2 x USB 2.0 Header (each header support 2 USB 2.0 ports)
2 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x TPM Header
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
1 x Printer Port Header

DIMENSION:  Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )

OS SUPPORT: Supports Windows 7 / 10
※Biostar reserves the right to add or remove support for any OS with or without notice.

ACCESSORIES: DDR3 & DDR3L DIMM Memory Slot
2 x SATA Cable
1 x I/O Shield
1 x Fully Setup Driver CD
1 x Quick Guide
