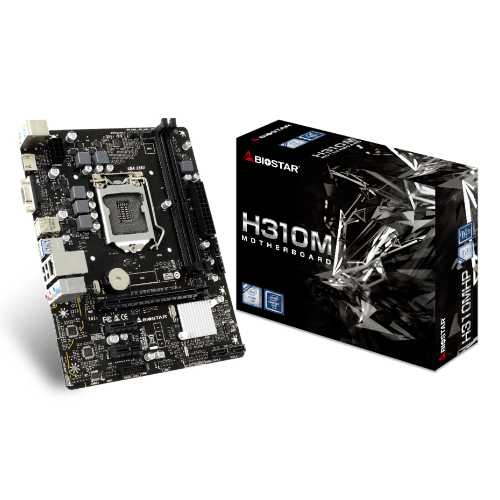

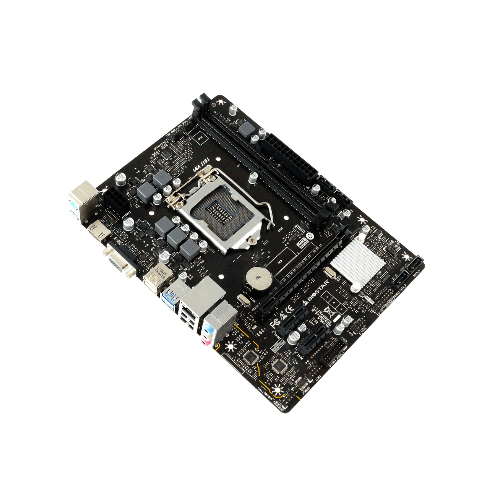

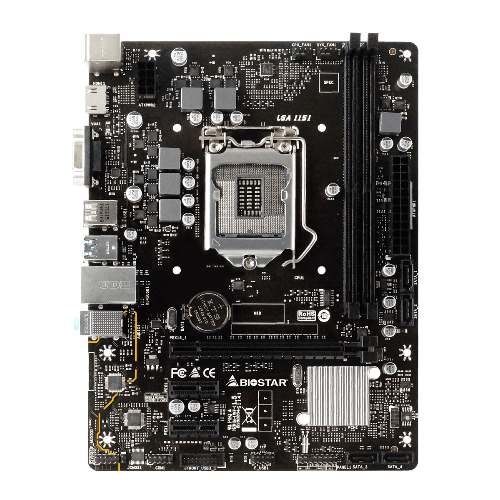

Biostar H310MHP Micro ATX LGA1151 Motherboard

In stock
Supports 9th & 8th Generation Intel® Core™ Processor
Intel H310 single chip architecture
Support Dual Channel DDR4 2666/2400/2133/1866 MHz
Support HDMI 4K resolution
Support GbE LAN
Support USB 3.2 Gen
Terms of Service

Intel H310 chipset

The Intel® H310 chipset is a single-chipset design to support socket 1151 Intel® 8th generation Intel® Core™ processor-based platform. Provides excellent performance and increased bandwidth and stability. The PC platform features improved adaptive performance that adds speed when you need it. When combined with advanced system responsiveness, the platform delivers the ultimate PC experience.


HD Audio

Provides high quality sound with minimal loss of audio fidelity.



The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.



DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.


Integrated HDMI with HDCP

Onboard HDMI connector allows full video & audio support. It has industry-leading high definition video quality.


PCIe Gen 3.0

PCIe 3.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces.



SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA II.


Dual DDR4

The primary advantages of DDR4 over DDR3, include higher module density, lower voltage requirements, coupled with higher data transfer rate.


USB 3.2 Gen1 Type-A

USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.


100% Solid Caps

With armor-plated Biostar Technology, all capacitors are placed with 100% solid capacitors that have a lasting life cycle, durability and stability for crucial components.



Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons leads users into the setup layer directly.

Chipset: Intel H310

CPU SUPPORT: Socket 1151 for 9th / 8th Gen Intel® Core, Pentium and Celeron processors
Maximum CPU TDP (Thermal Design Power): 95Watt
* Please refer to for CPU support list.

MEMORY: Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666
2x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
* Please refer to for Memory support list

Supports DX12
Supports HDCP

STORAGE: 4 x SATA III Connectors (6Gb/s)

7.1 Channels, High Definition Audio
Support HD Audio

USB: 4x USB 3.2(Gen1) port (2 on rear I/Os and 2 via internal header)
6x USB 2.0 port (4 on rear I/Os and 2 via internal header)

EXPANSION SLOT: 2x PCIe 2.0 x1 Slot
1x PCIe 3.0 x16 Slot

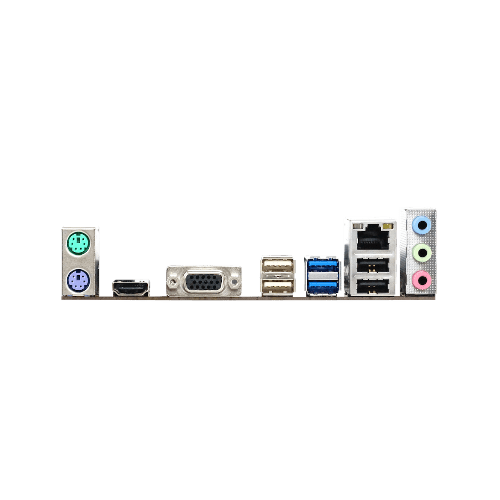

REAR I/O: 1x PS/2 Mouse Port
1x PS/2 Keyboard Port
1x HDMI Port
1x VGA Port
1x LAN Port
4x USB 2.0 Port
2x USB 3.2(Gen1) Port
3x Audio Jack

1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x COM Port Header

H/W MONITORING: CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION: Micro ATX Form Factor Dimension: 226mm x 171mm ( W x L )

OS SUPPORT: Supports Windows 7/ 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
