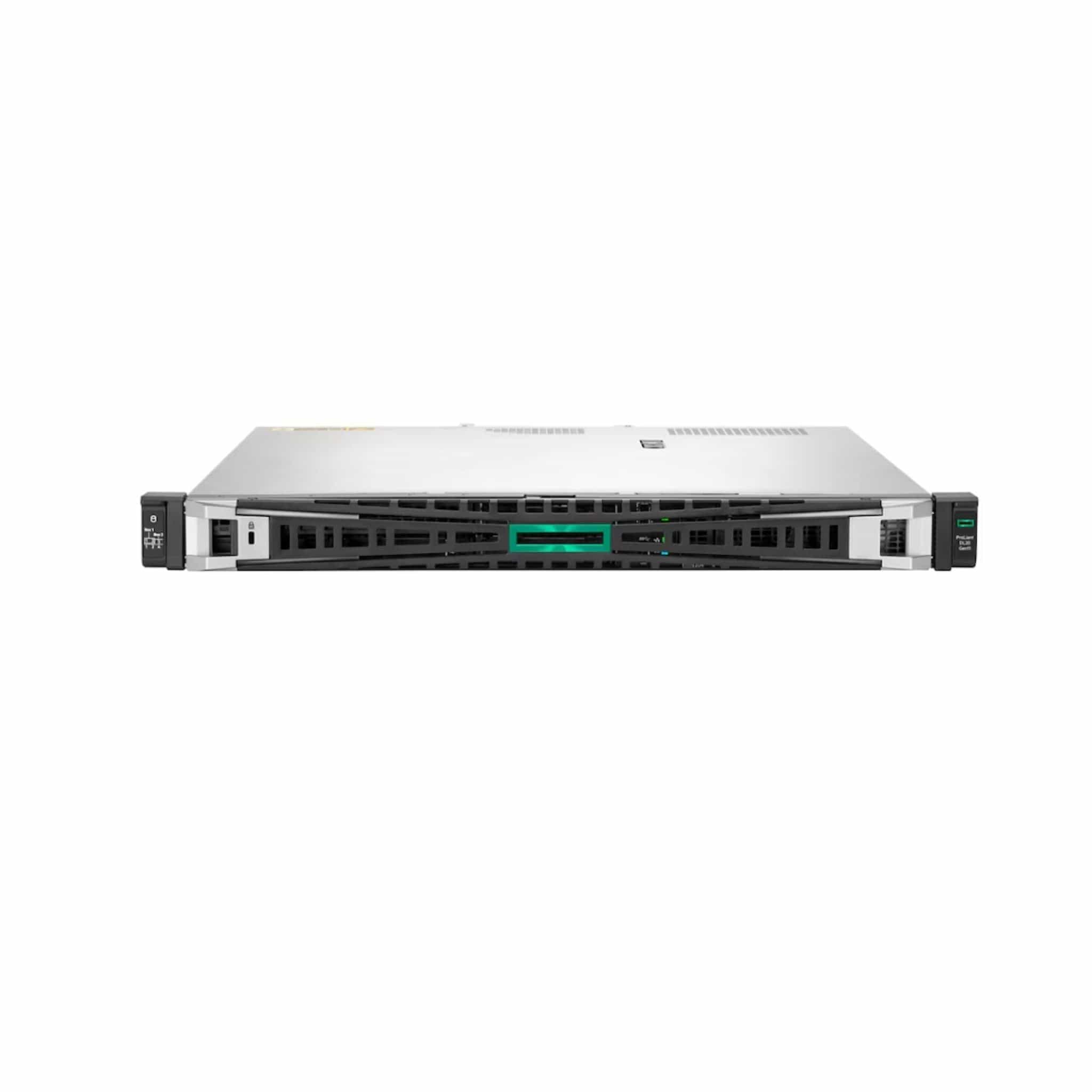

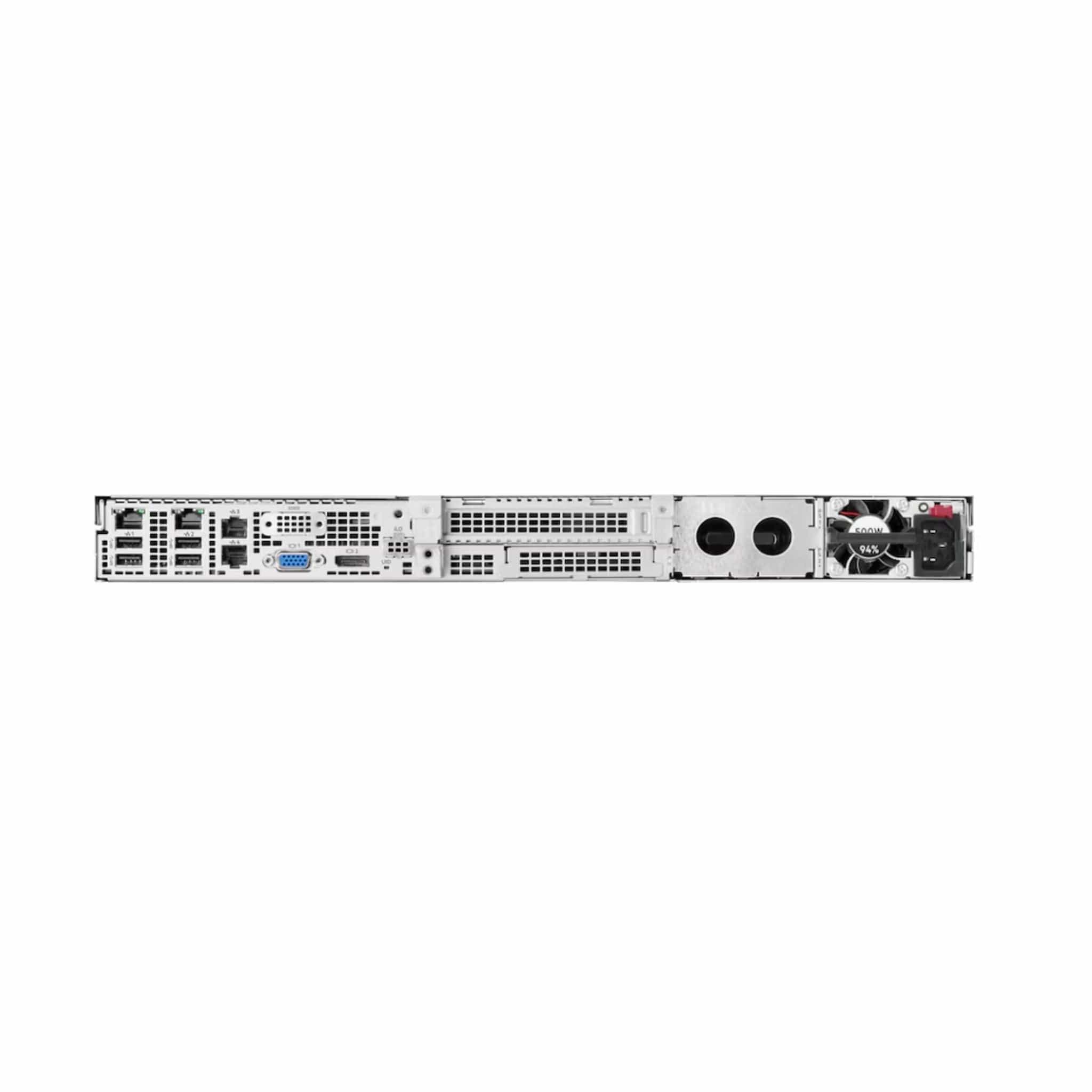

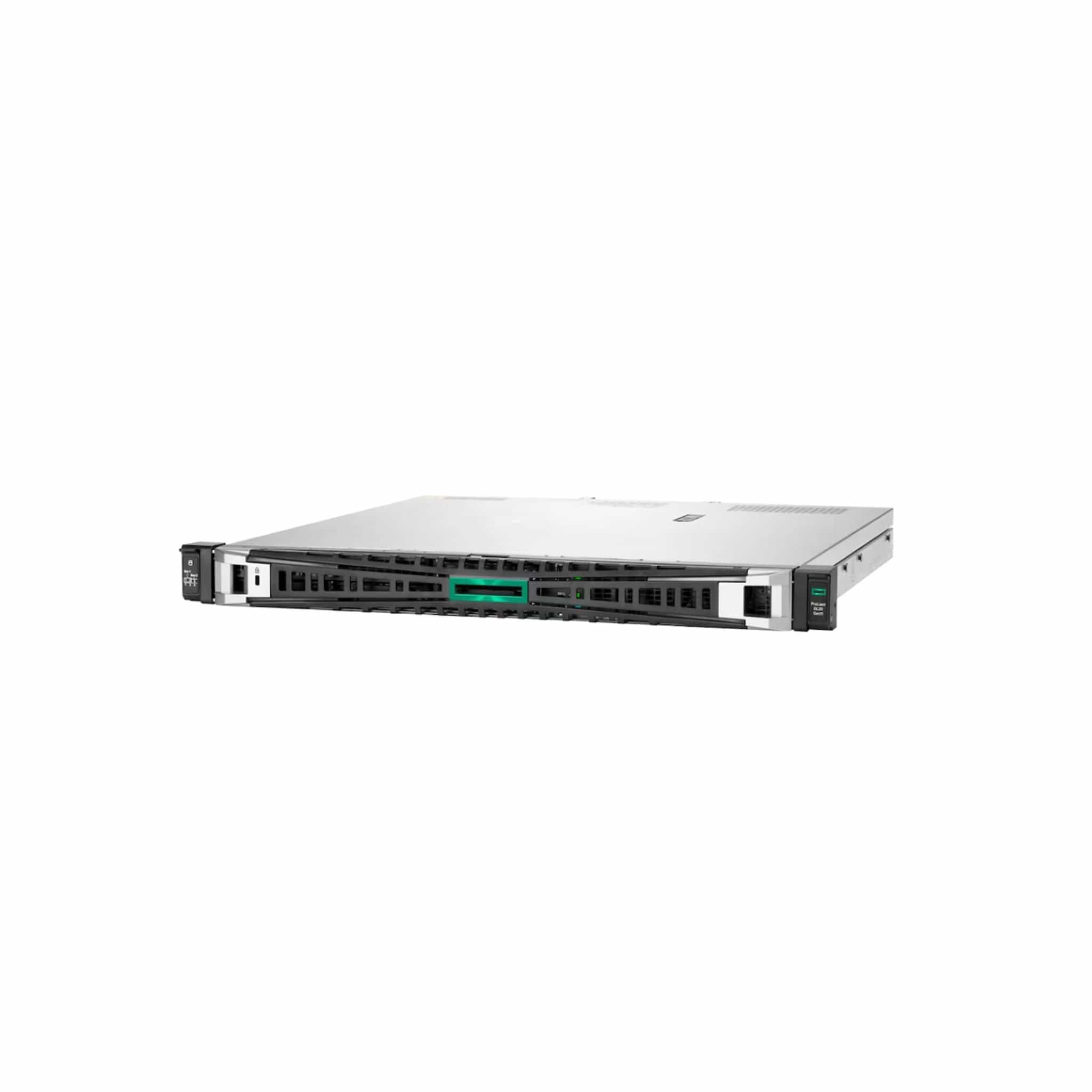

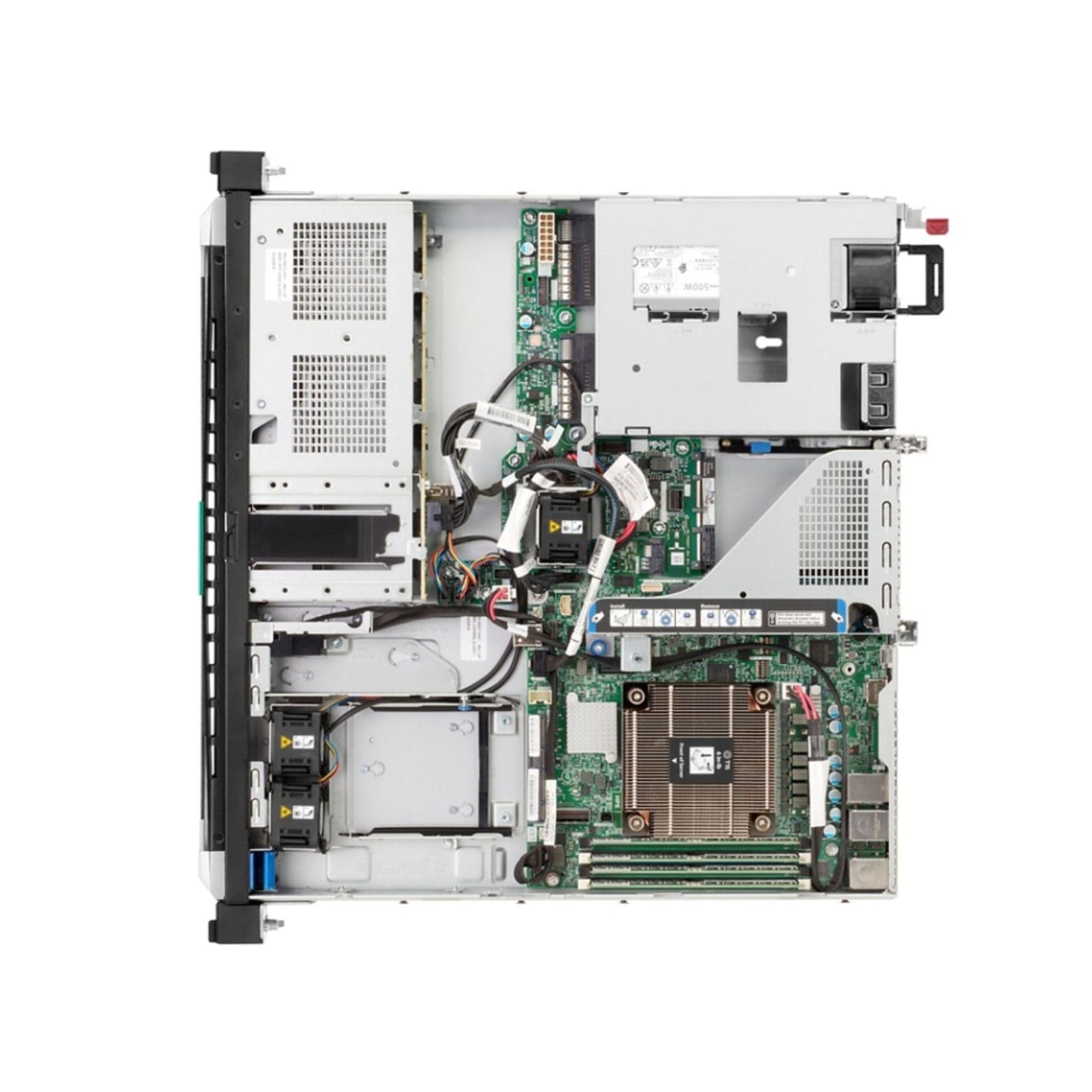

HPE ProLiant DL20 Gen11 E‑2414 2.6GHz 4‑core 1P 16GB‑U 2LFF‑NHP 290W PS Server
1 x Xeon E-2414 / up to 4.5 GHz
RAM 16 GB
non-hot-swap 3.5" bay(s)
no OS
rack-mountable 1U
SATA
no HDD
Gigabit Ethernet
Couldn't load pickup availability
Leave your email and we will notify as soon as the product/variant is back in stock
Compact, Secure, and Reliable Design for an Affordable Solution
- HPE ProLiant DL20 Gen11 server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.
- HPE ProLiant DL20 Gen11 server has great quality and design features that are a hallmark of the HPE ProLiant family such as tool-less access to system components and enhanced serviceability.
- Handle a range of light workloads to more demanding requirements with affordable configuration choices and a wide variety of Hewlett Packard Enterprise qualified options.
| Product Name | HPE ProLiant DL20 Gen11 Xeon E-2414 Quad-Core 16GB 2LFF NHP 290W 3-Year |
| Part Number | P65393-B21 |
| Product Line | ProLiant |
| Product Series | DL20 G11 |
| Product Type | Server |
Interfaces/Ports
| Total Number of USB Ports | 8 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| VGA | 1 |
| DisplayPorts | 1 |
| Remote Management Controller | iLO Management |
Controllers
| Controller Type | Serial ATA |
| Controller Model | Intel VROC |
Display & Graphics
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
I/O Expansions
| Number of Total Expansion Bays | 3 |
| Number of External 5.25" Bays | 1 |
| Number of 3.5" Bays | 2 |
| Number of LFF Bays | 2 |
| Total Number of Expansion Slots | 3 |
| PCI Express Details | 1 PCIe 5.0 CEM slot, 1 Internal OCP Storage Controller slot, 1 External OCP 3.0 Network Controller slot |
Memory
| Standard Memory | 16 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
| Signal Processing | Unregistered (Unbuffered) |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Power Description
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug / Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 290 W |
| Redundant Power Supply | Yes |
Processor Information
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | E-2414 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.60 GHz |
General Information
| Rack Height | 1U |
| Form Factor | Rack |
| Cache | 8 MB |
| Chipset Manufacturer | Intel |
| Chipset | Intel C262 |
| Height | 1.7" |
| Width | 17.1" |
| Depth | 15" |
| Operating System Supported | Windows Server Red Hat Enterprise Linux SuSE Linux Enterprise Server Ubuntu |
| Security Features | UEFI Secure Boot and Secure Start support. Immutable Silicon Root of Trust FIPS 140-2 validation Common Criteria certification Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) iLO Security Modes Granular control over iLO interfaces Smart card (PIV/CAC) and Kerberos based 2-factor Authentication. Tamper-free updates - components digitally signed and verified. Secure Recovery - recover critical firmware to known good state on detection of compromised FW. Ability to rollback firmware Secure erase of NAND TPM (Trusted Platform Module) 2.0 Bezel Locking Kit Chassis Intrusion detection option |
